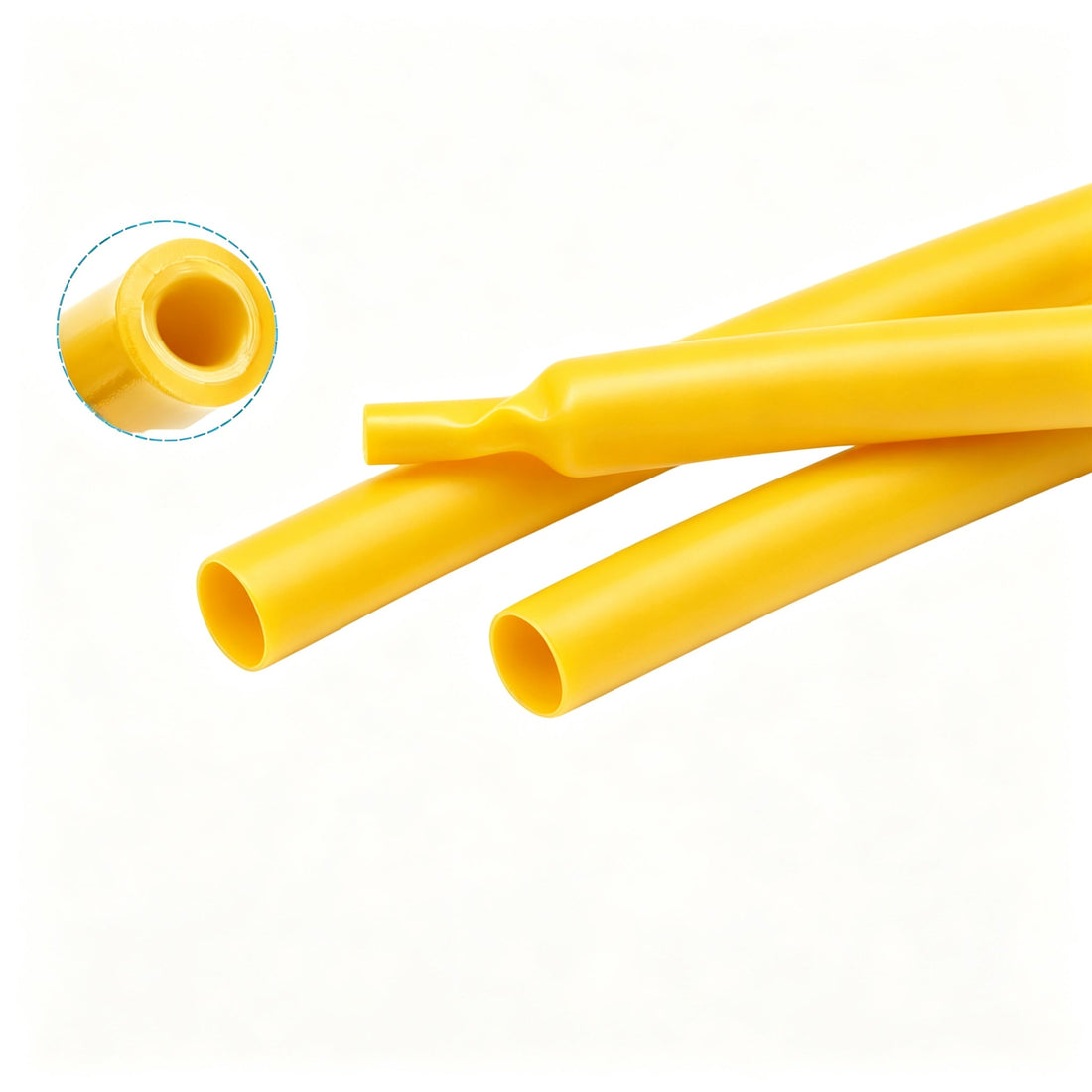

3:1 Dual Wall Adhesive-Lined Heat Shrink Tubing: A Practical Solution for Wire Insulation, Sealing & Protection
What Is 3:1 Dual Wall Adhesive-Lined Heat Shrink Tubing?
3:1 dual wall adhesive-lined heat shrink tubing is designed for wire insulation, cable sealing, connection protection, and electrical repairs.
Unlike standard single-wall heat shrink tubing, dual wall tubing combines a heat-shrinkable outer layer with an internal adhesive lining.
When evenly heated, the outer layer shrinks around the cable while the adhesive inside softens and fills small gaps between the tubing and the wire.
This dual-layer construction helps create a secure covering around wire connections and makes the tubing suitable for applications where insulation, sealing, and mechanical protection are important.
Why Choose a 3:1 Shrink Ratio?
A 3:1 shrink ratio allows the tubing to reduce significantly in diameter after heating.
This is particularly useful for wire connections because the splice or connector area is often thicker than the original wire.
A higher shrink ratio makes it easier for the tubing to fit over:
Thicker wire joints
Smaller cable sections
Different wire diameters
Irregularly shaped connections
After being positioned over the connection, the tubing can shrink down to provide a closer fit around the cable.
This makes 3:1 heat shrink tubing especially useful for electrical repairs and applications involving varying cable diameters.
How to Use Heat Shrink Tubing in Four Simple Steps
Using heat shrink tubing is straightforward when the correct size is selected.
Step 1: Cut the Tubing
Cut the heat shrink tubing to the required length according to the area you want to protect.
Step 2: Position It Over the Wire
Slide the tubing onto the wire before completing the final connection, then position it directly over the area that needs protection.
Step 3: Apply Heat Evenly
Use a heat gun to apply heat evenly around the tubing.
Move the heat source around the tubing instead of concentrating heat on one area for an extended period.
Step 4: Allow It to Fully Shrink
As the tubing shrinks, it conforms around the wire while the inner adhesive layer helps form a tighter seal.
What Are the Advantages of Dual Wall Construction?
Standard heat shrink tubing mainly relies on the shrinking outer material to cover the cable.
Dual wall adhesive-lined tubing adds an internal adhesive layer to provide additional sealing around the wire.
During heating, the outer layer contracts while the inner adhesive softens and fills small gaps between the tubing and the cable surface.
This construction is useful for connections that require additional insulation and protection.
Key advantages include:
Electrical Insulation: Helps cover exposed conductors and wire connections.
Improved Sealing: The adhesive lining helps fill gaps around the cable.
Mechanical Protection: Provides an additional protective layer around repaired or connected wires.
Cleaner Cable Management: Helps create a neat and organized finish.
Long-Term Protection: Suitable for equipment maintenance and electrical repair applications.
Before Shrink vs. After Shrink
Selecting the correct tubing size requires consideration of both the supplied diameter and the recovered diameter.
If the tubing is too small before shrinking, it may not fit over the wire connector.
If it is too large, it may not shrink tightly enough around the cable.
A practical sizing principle is:
The tubing should be large enough to fit over the widest part of the connection before shrinking, while still being able to shrink tightly around the smallest cable section afterward.
This is one of the main reasons why a 3:1 shrink ratio is useful for applications involving different cable diameters.
Multiple Sizes for Different Cable Requirements
Electrical systems can use cables with very different diameters.
Choosing the appropriate tubing size helps ensure that it can pass over the connection before heating and fit properly once fully shrunk.
Smaller sizes may be suitable for electronics and light-duty wiring, while larger sizes can be used for thicker cables, equipment wiring, and larger electrical connections.
Before selecting a size, measure both the cable diameter and the widest point of the connection.
Where Can Heat Shrink Tubing Be Used?
Dual wall adhesive-lined heat shrink tubing can be used in a wide variety of electrical, household, industrial, and maintenance applications.
Common applications include:
Power Distribution
Suitable for insulating and protecting wiring inside electrical and power distribution systems.
Generators & Equipment
Can be used for wiring connections and maintenance on generators and electrical equipment.
Household Electrical Repairs
Useful for household wires, electrical connections, appliances, and DIY projects.
Wire Connections
Provides additional insulation around soldered, crimped, or repaired wire joints.
Damaged Cable Protection
Can provide additional protection around suitable sections of damaged cable jackets.
Machine Rooms & Equipment Wiring
Useful for organizing and protecting cables in server rooms, equipment rooms, and other technical environments.
Automotive & Emergency Repairs
Can also be used for automotive wiring, maintenance, and various electrical repair situations.
How to Choose the Right Heat Shrink Tubing Size
When selecting heat shrink tubing, consider three important measurements.
1. Cable Diameter
The recovered tubing should be able to fit securely around the cable.
2. Maximum Connector Diameter
The supplied tubing must be large enough to slide over the widest part of the wire connection.
3. Required Protection Length
Cut enough tubing to cover the connection area while extending slightly beyond both sides of the joint.
If you are unsure which size to choose, measure the outside diameter of both the cable and the connection first, then compare those measurements with the tubing specification chart.
A Simple Way to Improve Wire Protection
A reliable wire connection requires more than simply joining two conductors together. Proper insulation, sealing, and mechanical protection are also important.
With its combination of a 3:1 shrink ratio, dual wall construction, and adhesive lining, this heat shrink tubing can accommodate a variety of wire diameters and connection shapes.
Whether used for electrical work, equipment maintenance, automotive wiring, household repairs, or industrial applications, properly selected heat shrink tubing provides a clean and practical way to protect wire connections.
