Polyimide High Temperature Tape: A Practical Choice for Electrical Insulation, Soldering Masking & Precision Work

What Is Polyimide High Temperature Tape?

Polyimide high temperature tape is a functional adhesive tape made primarily from a polyimide film backing combined with an adhesive layer.

One of its most recognizable characteristics is its amber or brown translucent appearance.

Unlike ordinary packaging tape, this type of tape is primarily designed for electronics, electrical applications, industrial masking, insulation, and protection.

Its thin and flexible construction makes it easy to apply around circuit boards, wires, coils, and many irregular surfaces.

For electronic repair, soldering work, and precision masking, polyimide tape provides a practical and versatile solution.

Multiple Widths for Different Applications

Different projects require different tape widths.

For small electronic components, circuit boards, and precision masking, narrow tape provides more accurate coverage.

For battery assemblies, larger circuit boards, or industrial components, wider tape can improve working efficiency by covering a larger area at once.

A simple selection guide is:

Narrow Widths: Suitable for small components, thin wires, detailed masking, and localized insulation.

Medium Widths: Suitable for PCB work, general electronic repair, and soldering protection.

Wide Widths: Better suited for larger surfaces, battery assemblies, and industrial applications.

Thin Construction for Precision Electronic Work

In electronic applications, thicker does not always mean better.

Circuit boards, electronic devices, and compact assemblies often have limited internal space. Excessively thick materials may interfere with fitting or assembly.

One of the key advantages of polyimide tape is its thin profile.

A thin tape can:

• Fit more easily around small electronic parts
• Reduce unnecessary bulk
• Provide more precise masking
• Work effectively around coils and wiring
• Remain manageable when multiple layers are required

Its smooth film surface also helps create a neat and professional finish.

Why Is Polyimide Tape Commonly Used in Electronics?

In many applications, polyimide tape does much more than simply hold two objects together.

Its primary purpose is often insulation, masking, and protection.

Common applications include:

PCB Soldering Masking

It can be used to temporarily cover areas that should remain protected during certain soldering or processing operations.

Electronic Component Protection

Sensitive sections of electronic assemblies can be covered during manufacturing or repair work.

Wire and Coil Insulation

Polyimide tape can be used for auxiliary insulation and securing of wires, coils, and selected electrical components.

Battery Assemblies

It may be used for insulation, securing, or localized protection in suitable battery and electronic assembly applications.

3D Printing & Industrial Processing

Polyimide tape can also be used as an auxiliary protective material in certain heated platforms or industrial working environments.

Precision Masking

Different tape widths make it easier to cover specific areas accurately while maintaining clean boundaries.

Actual temperature resistance, insulation performance, and adhesive characteristics may vary depending on the specific tape model, so technical specifications should always be checked for demanding applications.

Flexible Enough for Complex Surfaces

Flexibility is another important advantage of polyimide film tape.

Not every surface in an electronic or industrial application is perfectly flat.

The tape may need to be applied around:

Wires, coils, cylindrical components, curved surfaces, small connectors, and irregularly shaped parts.

A material that is too rigid may be difficult to apply securely.

The flexible film structure allows polyimide tape to conform to many complex shapes, making it suitable for both flat surface masking and wrapped applications.

Why Do Thickness and Width Both Matter?

When choosing tape, many users focus mainly on width. However, both width and thickness are important specifications.

Width determines how much surface area can be covered in a single application.

Thickness can affect flexibility, space requirements, handling, and the overall protective layer.

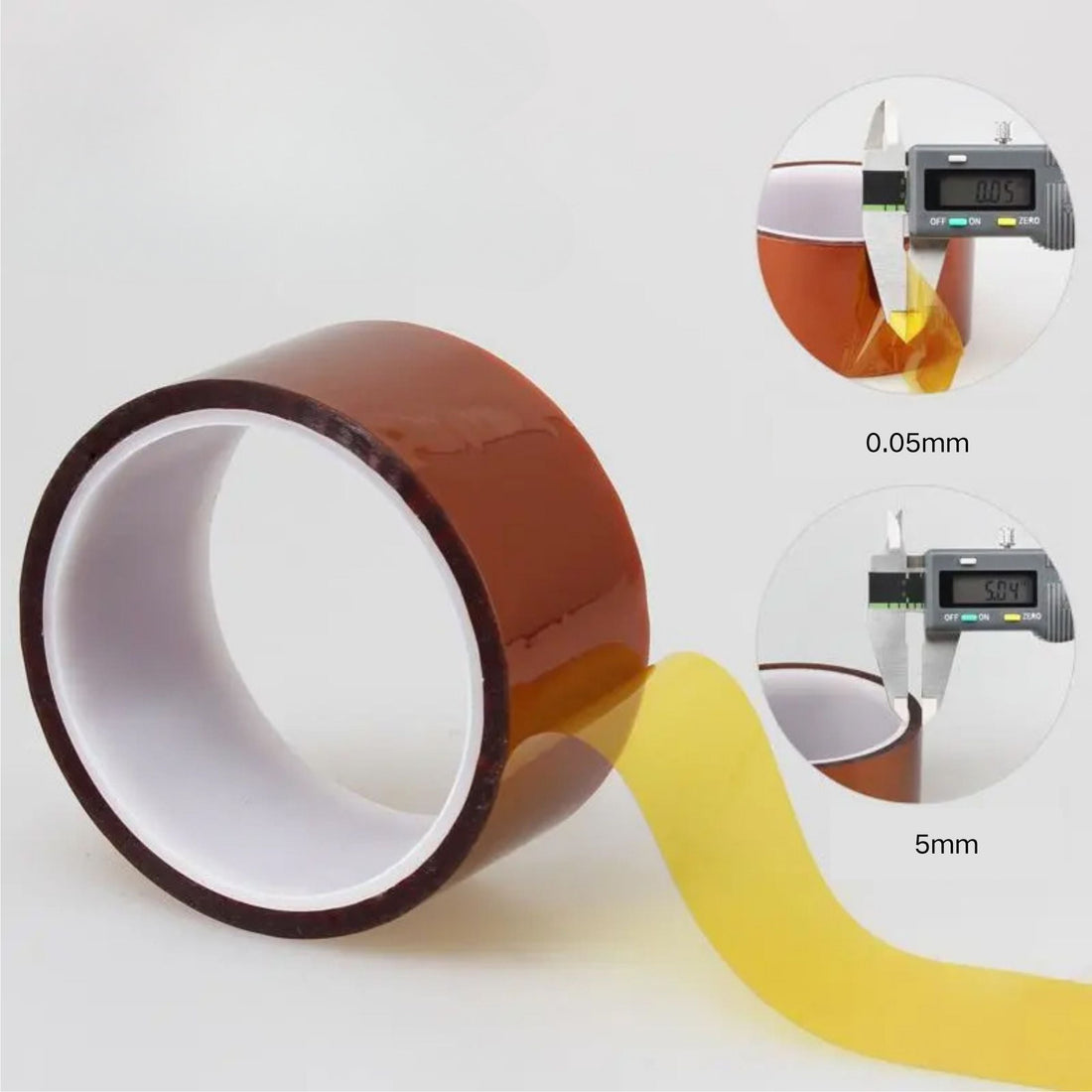

Based on the product image provided, one example specification shown is:

Tape Thickness: Approx. 0.05 mm

Tape Width Example: 5 mm

If your product is available in additional sizes, those widths can be offered as separate variants.

Typical options may include:

5 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 50 mm, or other available specifications.

Customers can then choose a width that matches their specific application.

How to Choose the Right Tape Width

Start by considering the size of the area that needs to be protected.

For small electronic components or detailed masking, a narrower tape is usually more convenient.

For general circuit board work and electronic repair, a medium-width tape may be more efficient.

For larger components and broader surfaces, wider tape can reduce the number of strips required.

A useful rule is:

Choose a tape width slightly larger than the area that needs protection, without making it unnecessarily wide.

This helps provide complete coverage while reducing additional trimming.

Common Applications

Polyimide high temperature tape is particularly useful in electronics, electrical work, and industrial applications.

Typical uses include:

PCB Repair & Soldering

Suitable for selected soldering, rework, and masking operations.

Electronics Manufacturing

Used for temporary securing, masking, and protective applications during production.

Battery & Battery Pack Assembly

Suitable for insulation, fixing, and protection where compatible with the required manufacturing process.

Motors & Coils

Can be used for auxiliary insulation and securing of coils, wires, and selected electrical components.

3D Printing

Applicable to certain printing platforms and related processing environments.

Automotive Electronics

Useful in selected wiring, sensor, and electrical maintenance applications.

Industrial Processing

Suitable for precision masking and protection in compatible manufacturing environments.

Tips for Better Application

Before applying the tape, make sure the surface is clean, dry, and free from excessive oil, dust, or debris.

Apply the tape smoothly whenever possible to reduce wrinkles and trapped air.

When wrapping curved parts or wires, apply gentle and even pressure while winding.

For demanding high-temperature, electrical insulation, or long-term industrial applications, always verify the specific product data, including:

• Temperature rating
• Electrical insulation properties
• Adhesive type
• Total tape thickness
• Film thickness
• Dielectric performance

These specifications should be confirmed according to the exact product model.

A Small Roll with a Wide Range of Uses

Polyimide high temperature tape has a simple appearance, but it can serve many important roles in electronics manufacturing, electrical maintenance, and industrial work.

Its combination of thin construction, flexibility, insulation capability, masking performance, and suitability for heat-related applications makes it a versatile workshop material.

Whether you are an electronics engineer, technician, manufacturer, repair professional, or DIY enthusiast, selecting the right width of polyimide tape can make insulation, masking, and protection work cleaner, easier, and more efficient.
